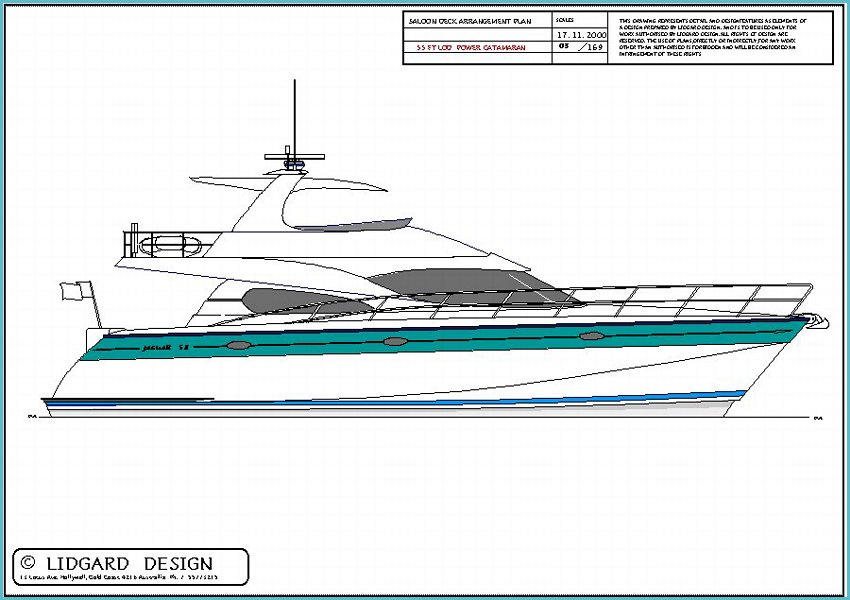

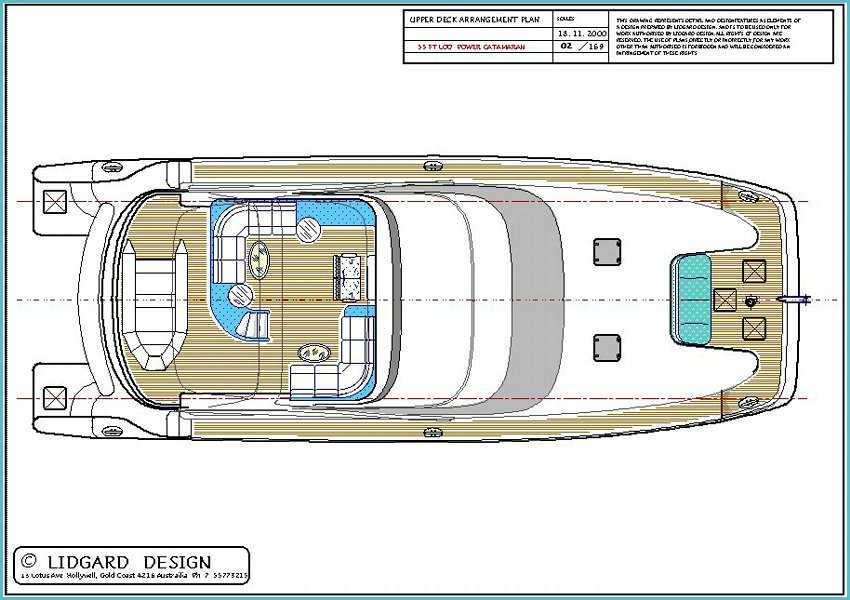

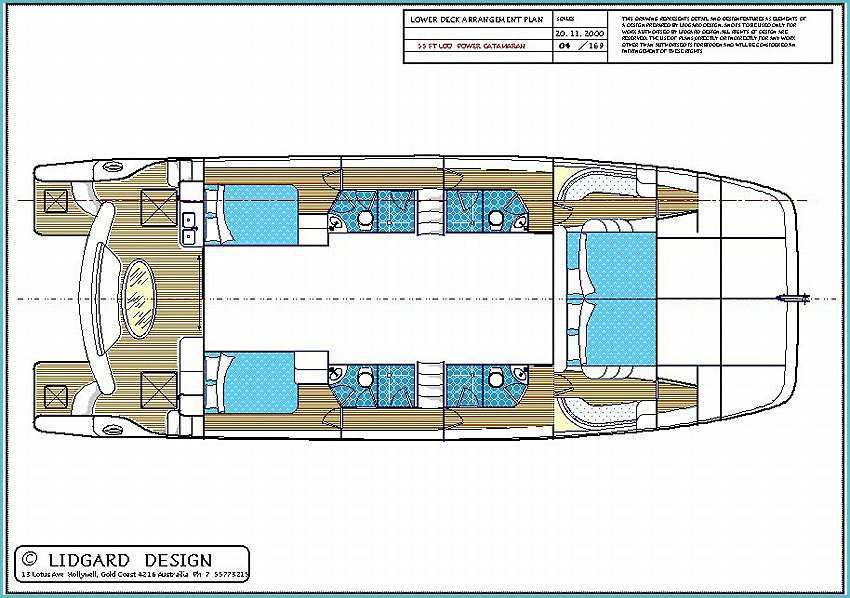

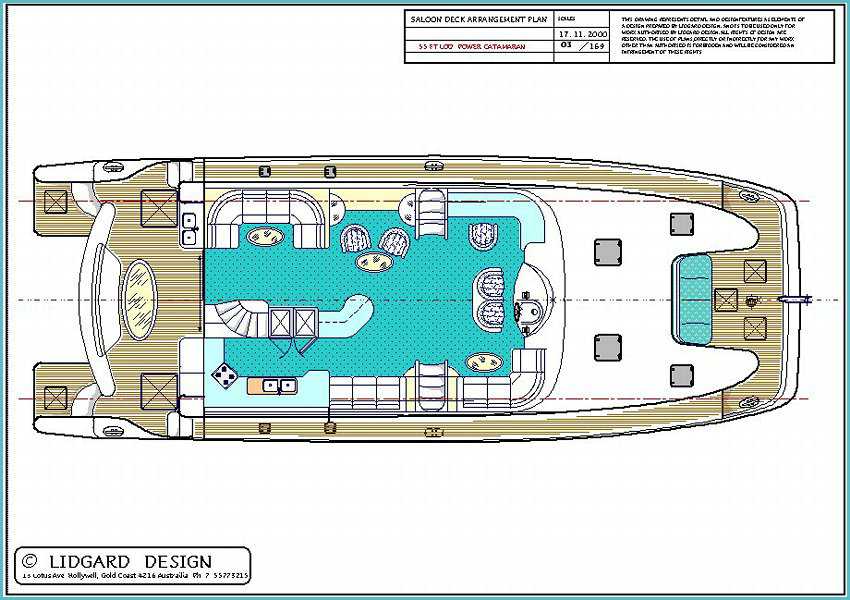

This power catamarans hull concept is pure displacement with narrow beamed high prismatic hulls offering low horse power requirements to achieve more than acceptable performance with long range for both coastal or offshore cruising. Lower deck accommodations allow 4 generous double cabins with ensuites to each At main saloon level a huge open plan area is achieved with two main lounging and dining areas. The flying bridge van be as a fully enclosed wheel house or as a open fly bridge with hard top. Construction is foam and balsa cored epoxy composites with large areas as quick build developed surfaces.

• Multi hull power boats
• Lidgard Yacht Design Web Site Directory
• Lidgard yacht design home page
• contact

Click any thumb nail image below
          to view a larger image and then
Back  to return again


                                 PRINCIPAL DIMENSIONS
 17.200 mtr length on deck LOW RESISTANCE POWER CATAMARAN


LOA     including extensions                                  18.350 mtr  -  60 ft
LOD                                                                       17.000 mtr  -  55 ft
BEAM MAX.                                                              6.950 mtr   -  60 ft
DRAFT                                                                     1.200 mtr  -    3 ft 10in
WING DECK CLEARANCE                                           1.000 mtr  -    3 ft 3in
MAX HEIGHT ABOVE WATER ex mast etc.                  5.800 mtr  -  19 ft

DISPLACEMENT at design  waterline                        28,500 kg  -  59,400 lb
DISPLACEMENT at light ship                                    24,500 kg  -  53,900 lb

ENGINES                                                                   2 * YANMAR 6LY2-STE 420 HP each
PERFORMANCE MAX AT LIGHT SHIP                           25 KNOTS
OPTIMUM CRUISING                                                  14 - 17 knots
FUEL CAPACITY                                                       4000 litres  -  1056 gal US
WATER CAPACITY                                                     800 litres   -   211 gal US
