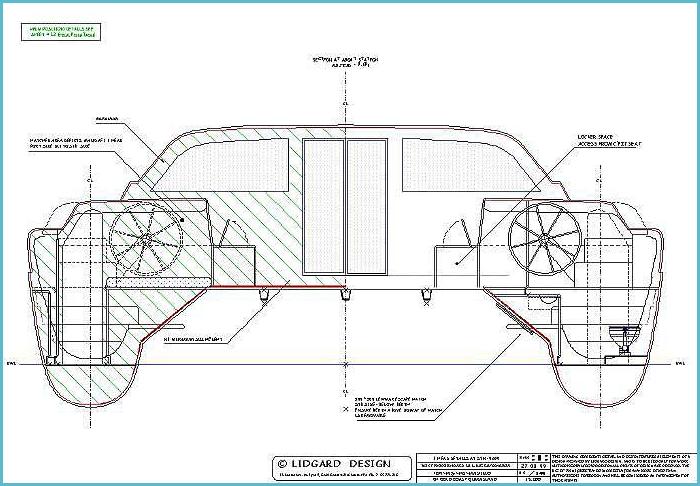

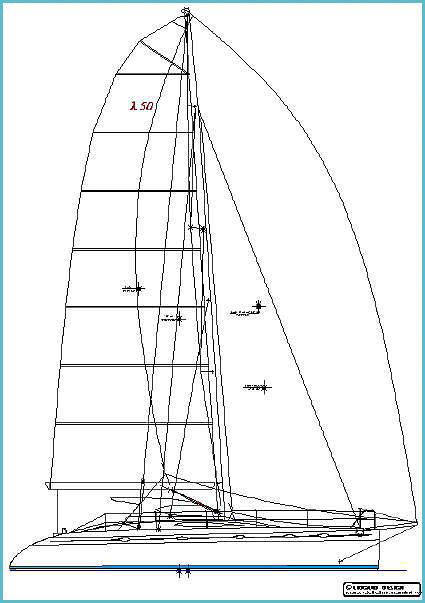

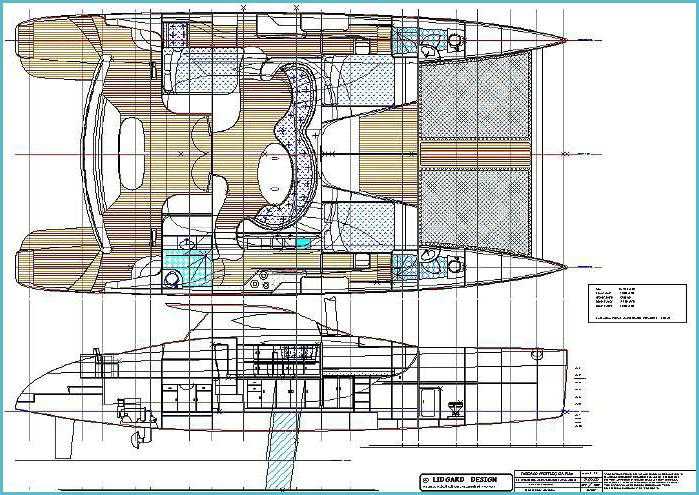

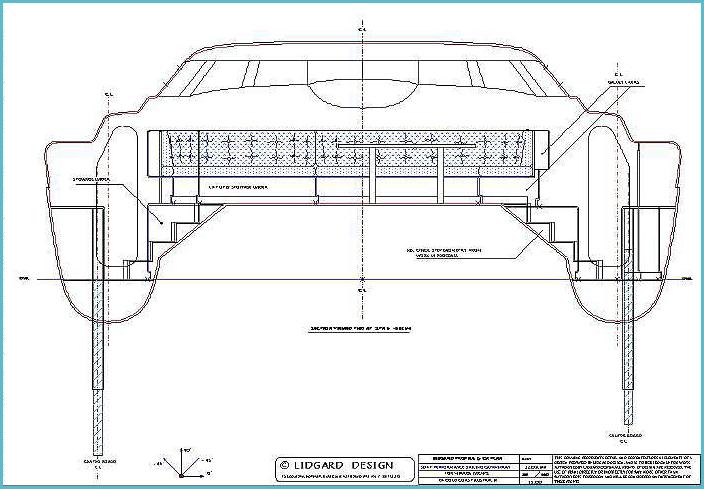

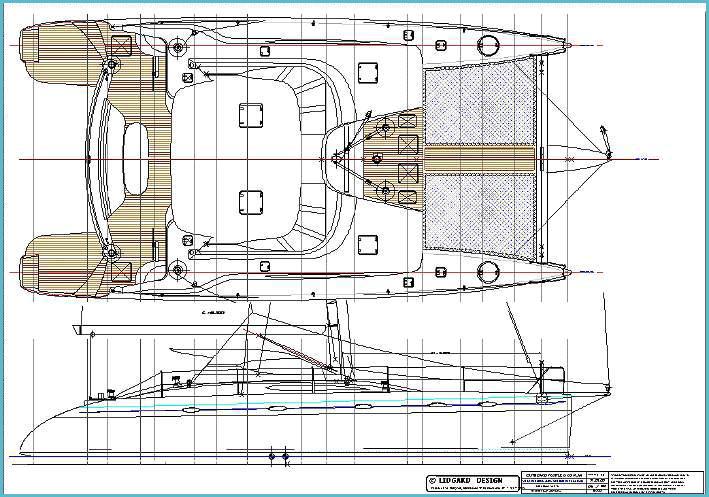

50ft PERFORMANCE custom SAILING CATAMARAN
PRINCIPAL DIMENSIONS
LOA .........................15.250mtr
DWL ......................... 15.015 mtr
BEAM MAX .........................7.880 mtr
DRAFT FIXED KEEL .........................1.350mtr
CENTRE BOARD OPTION
DRAFT BOARD DOWN ....................2.160 mtr
OR WITH BOARD UP .........................1.350 mtr
WING DECK CLEARANCE. .........................975 mtr
WING DECK LENGTH AS DRAWN.................13.125 mtr
MAIN SAIL .........................92 m2
FORE TRIANGLE ......................... 41 m2
TOTAL SA ........................133 m2
MAST ABOVE DECK .........................20.98 MTR ~ 68'7"
Prismatic coefficient = v2/ (MaXa*L) .............. 0.616
Sinkage kg per cm = (b1*Spacing/3)*10.25 .............. 268 kg
Righting Moment at 1 degree kgm = ............. 8073kg
DISPLACEMENT/ VOLUME BELOW DWL ......
NB: THIS NOT THE ACTUAL VESSEL'S WEIGHT
AS DRAWN ......................... 9277kg
|
|
