p65

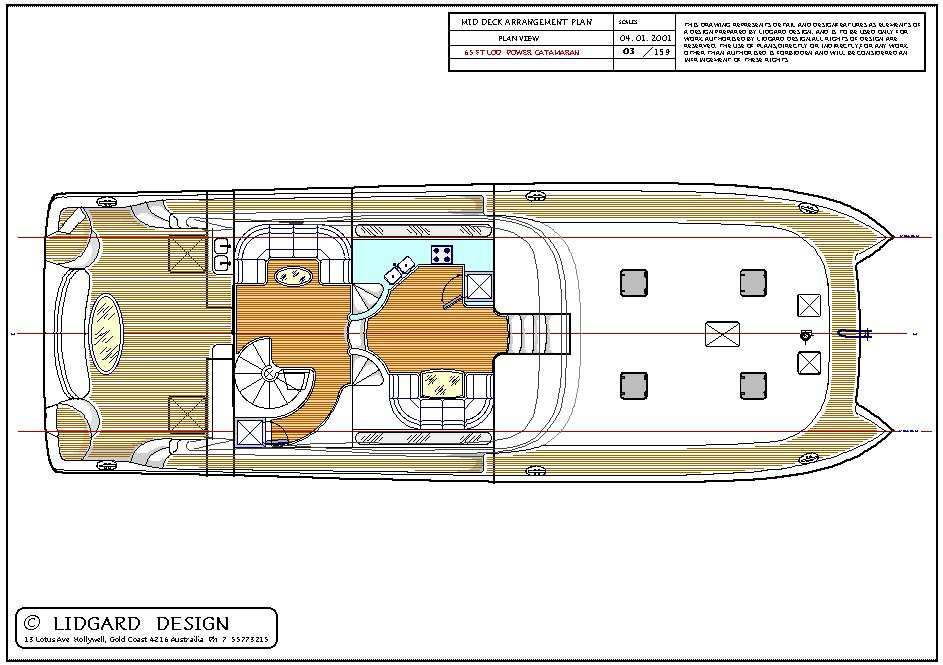

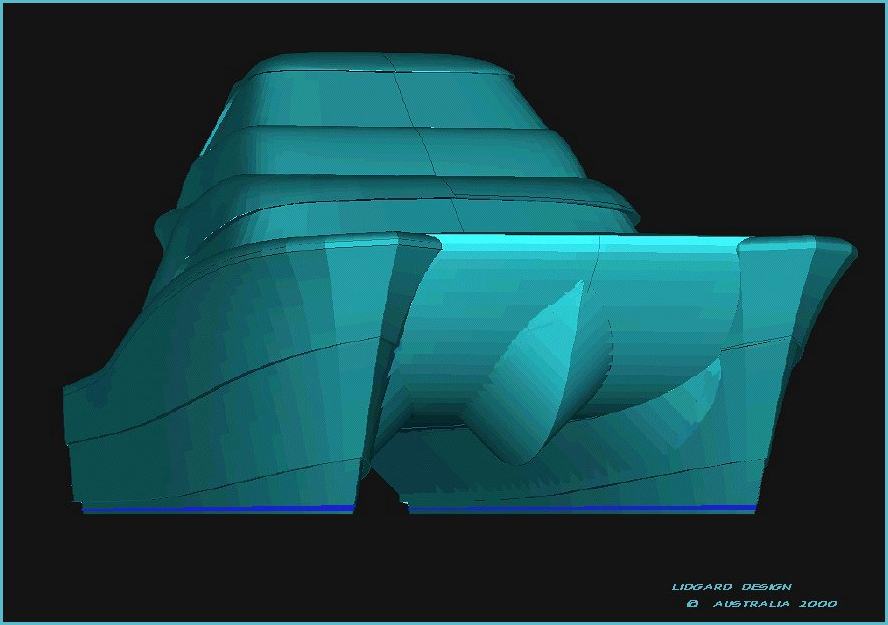

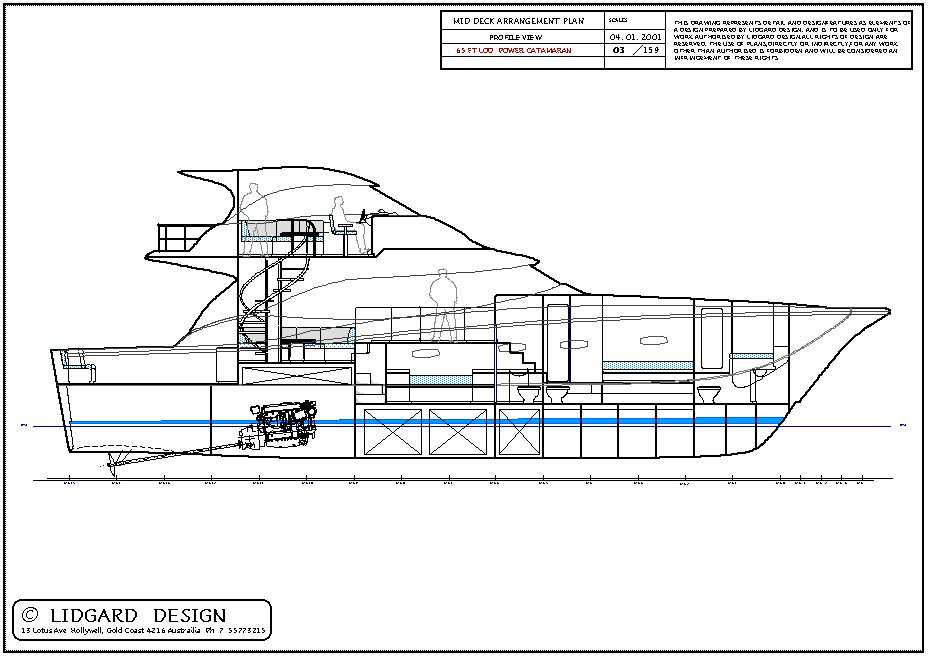

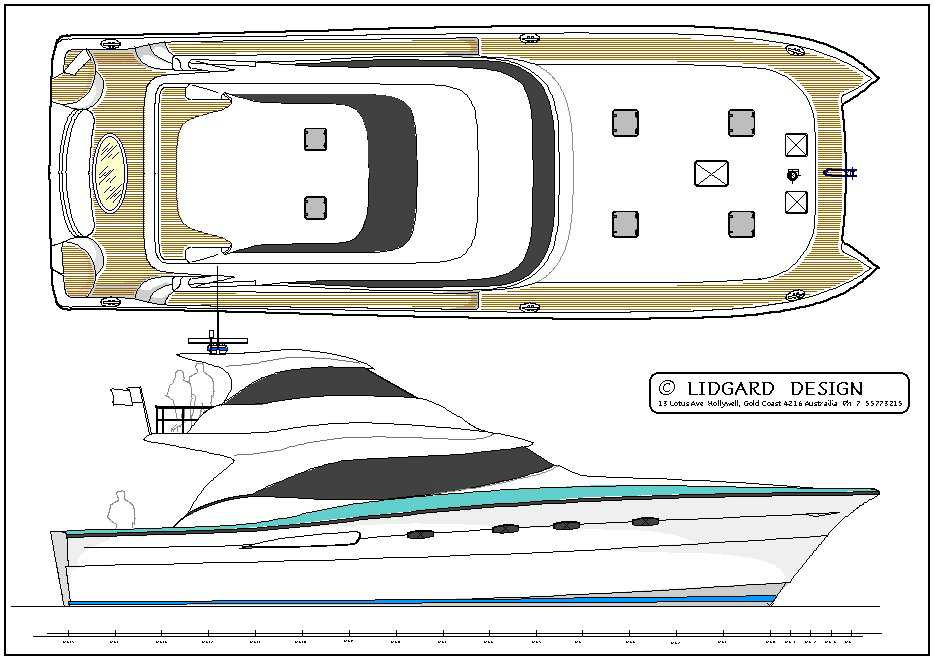

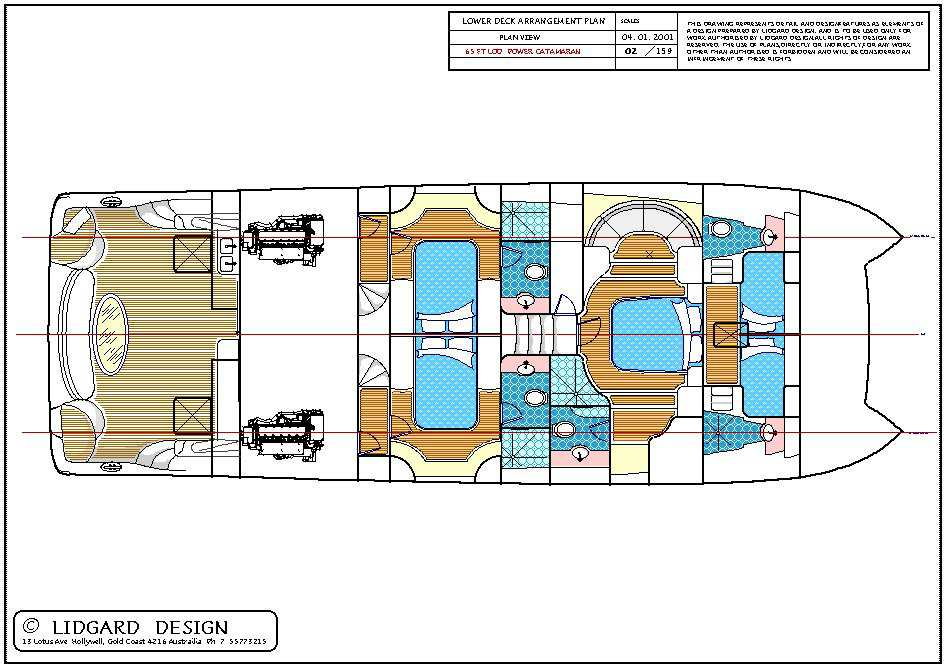

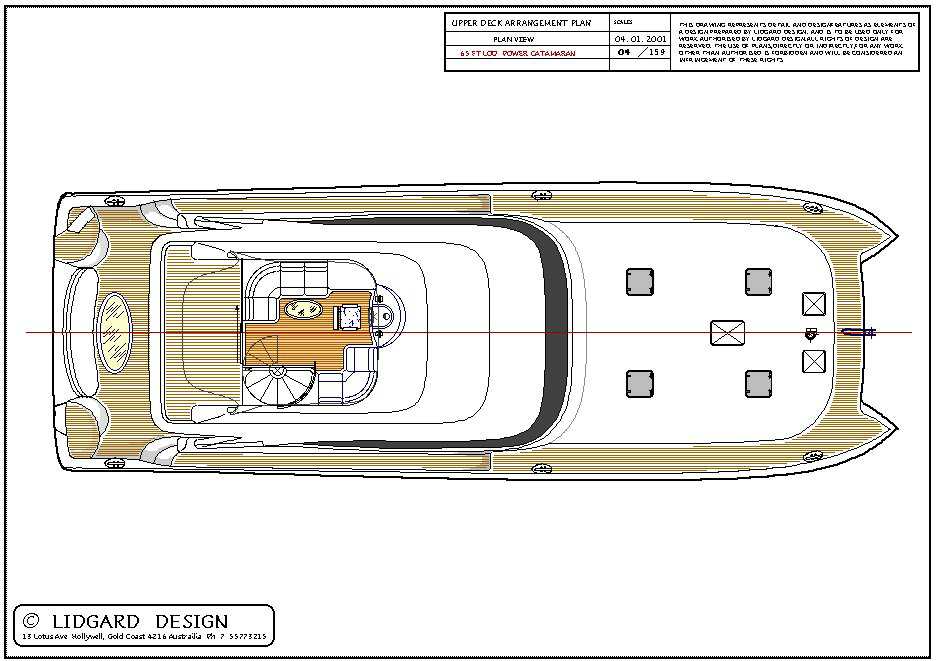

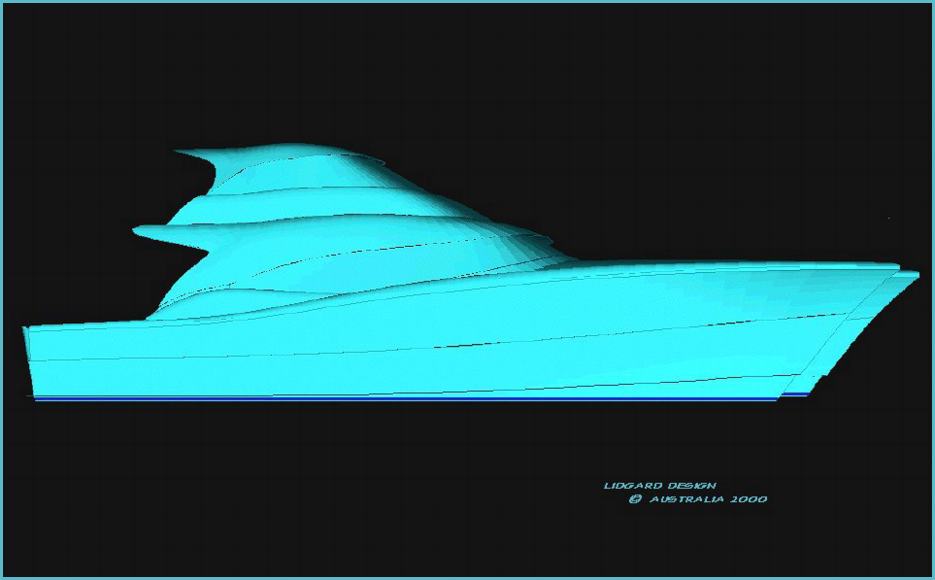

This power catamarans hull concept is that of a semi displacement type with hull forms that offer efficient powering for moderate required speeds plus the opportunity to install greater HP to achieve speeds equal to that of much higher powered mono hulls of similar overall length. Lower deck accommodations allow three generous double cabins with en suites to each plus a double berth crew quarters with en suite. At main saloon level a huge open plan area is achieved with two main lounging and dining areas with galley and bar. The flying bridge van be as a fully enclosed wheel house or as a open fly bridge with hard top.Construction is foam and balsa cored epoxy composites with large areas as quick build developed surfaces.


Back to the following

Click any thumb nail image below
          to view a larger image and then
Back  to return again

















                                    PRINCIPAL DIMENSIONS
            20 mtr length on deck LOW RESISTANCE POWER CATAMARAN


LOA                                                                        20.000 mtr  -  65 ft 6"
LOD                                                                        20.000 mtr  -  65 ft 6"
BEAM MAX.                                                               7.260 mtr   - 23 ft 10"
DRAFT                                                                      1.250 mtr  -   4 ft
WING DECK CLEARANCE                                            1.200 mtr  -   3 ft 11in

DISPLACEMENT at design  waterline                       28,000 kg  -  61,600 lb
DISPLACEMENT at light ship                                    24,500 kg  -  53,900 lb

ENGINES   min.                                                          850 HP each
ENGINES   max.                                                        1300 HP each
