Designed as a luxurious sailing catamaran suitable for both private cruising or charter. Construction is from epoxy foam glass composites with scantlings that will meet all general code requirements ensuring an incredibly strong and robust multi hull vessel capable of extended trans ocean passages.

• Multi hull yachts
• Lidgard Yacht Design Web Site Directory
• Lidgard design Australia home page
• contact

Click any thumb nail image below
          to view a larger image and then
Back  to return again

         48FT PERFORMANCE CRUISING CATAMARAN

                     PRINCIPAL DIMENSIONS

LOA           .........................................    14.720 MTR
DWL           ........................................    14.200 MTR
BEAM/MAX.           ............................     8.368 MTR
DISPLACEMENT RANGE .................     8750 KG ~11200 KG
SPONSON BEAM LENGTH RATIO  ..     12.19 : 1
DRAFT                                  ..........  1.400 MTRS FIXED
WING DECK CLEARANCE         .......    1.050 MTR
MINIMUM HEAD ROOM  ....................     2.050 MTR
RATE OF SINKAGE AT DWL KG PER CM  .................265KG

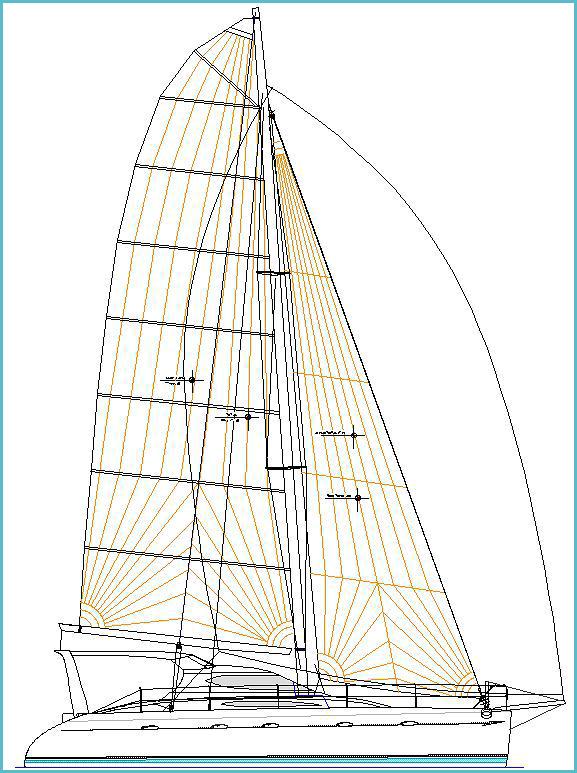

SAIL AREA MAIN & FORE TRIANGLE  ...................  130.60 m2
