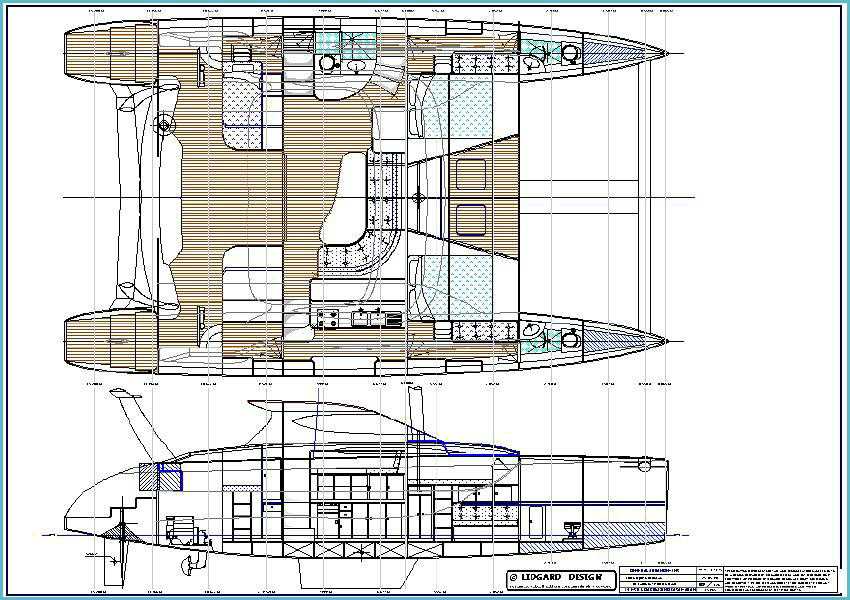

Built in epoxy glass foam composites the light displacement and generous sail plan of this sailing catamaran offers exceptional cruising performance in speed and comfort. Safety is assured with a generous beam that combined with the interior plan will offer long term live a board with all the comforts plus the performance and robust structures to get you where you want to go in all conditions quickly and safely.

• Multi hull yachts
• Lidgard Yacht Design Web Site Directory
• Lidgard yacht design home page
• contact

Click any thumb nail image below
          to view a larger image and then
Back  to return again

                 46FT PERFORMANCE CRUISING CATAMARAN

                            PRINCIPAL DIMENSIONS


DISPLACEMENT AT DWL ......................................... 7000 KG - 8200KG
LOA                              .........................................  14.000 MTRS
BEAM MAX.                    .........................................  8.300 MTRS
DRAFT                          ......................................... 1.300 MTRS FIXED
WING DECK CLEARANCE ......................................... 1.000 MTRS
HULL C/L - C/L             ......................................... 6.675 MTRS

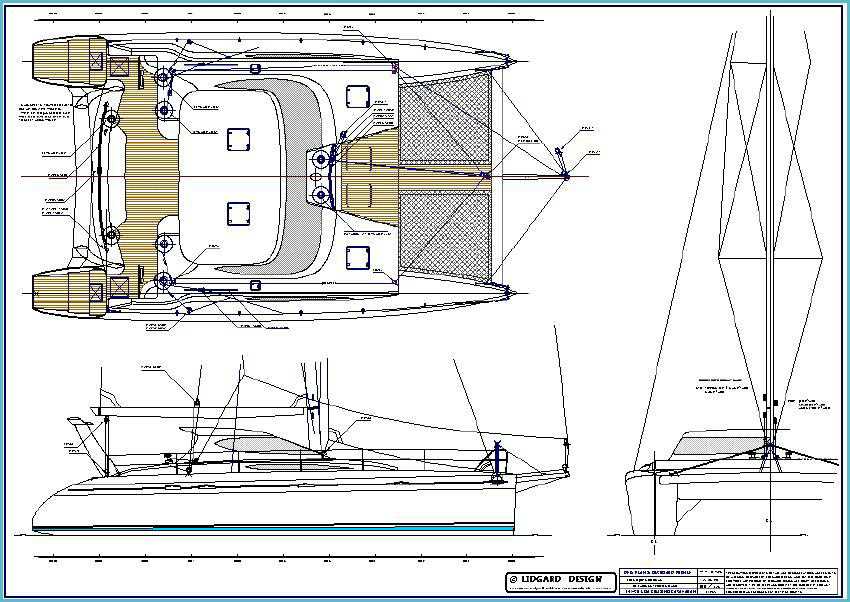

SAIL AREA MAIN & FORE TRIANGLE  ............... 115.00 M2
SPONS. WL BEAM / DWL ......................................... 11.82 : 1
RATE OF SINKAGE AT DWL KG PER CM .................. 255KG
