40 ft sailing catamaran multihull yacht design

bv40

Construction medium for this 40 ft sailing catamaran is epoxy glass and foam
cored composites. This multi hull designs robust structures make this a solid
offshore capable cruising catamaran. A generous sail plan and realistic design

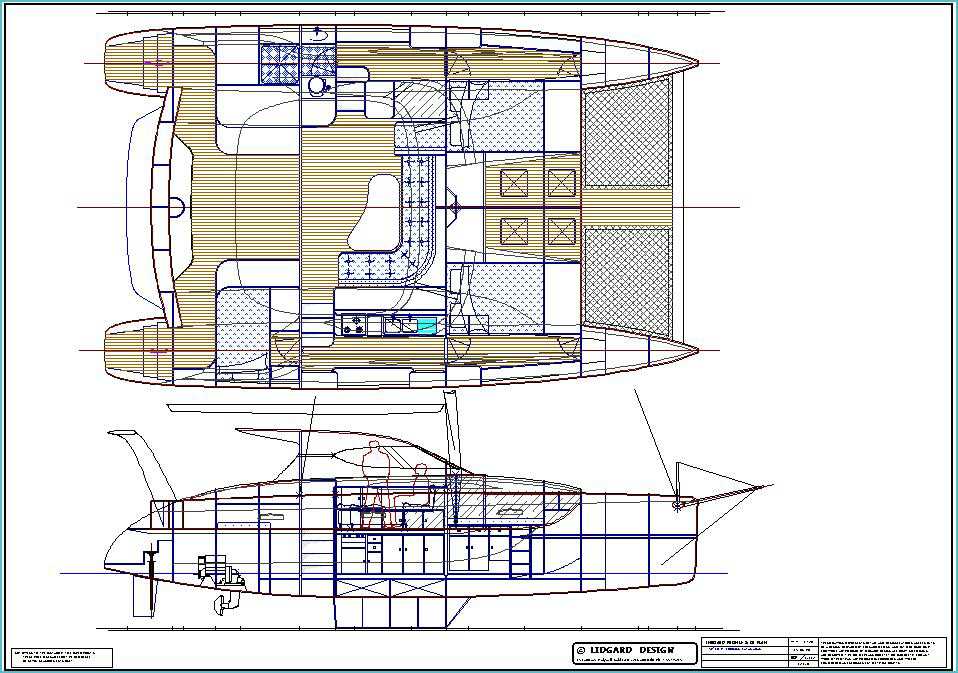

weights offer good performance parameters. A versitile general arrangement
offers the internal volume that should be integral to this size vessel.

Back to the following

Multi hull yachts
Lidgard Yacht Design Web Site Directory
Lidgard home page
contact

Click any thumb nail image below
          to view a larger image and then
Back  to return again


             40FT PERFORMANCE CRUISING CATAMARAN

                      PRINCIPAL DIMENSIONS

DISPLACEMENT AS AT DWL    ....................................  7223 KG
LOA                                       .................................   12.190 MTRS   ( 39´4" )
BEAM MAX.                         ........................................   7.400 MTRS
DRAFT                               ........................................   1.130 MTRS
WING DECK CLEARANCE      ........................................   0.9 MTRS
HULL C/L - C/L                   ........................................   5.900 MTRS

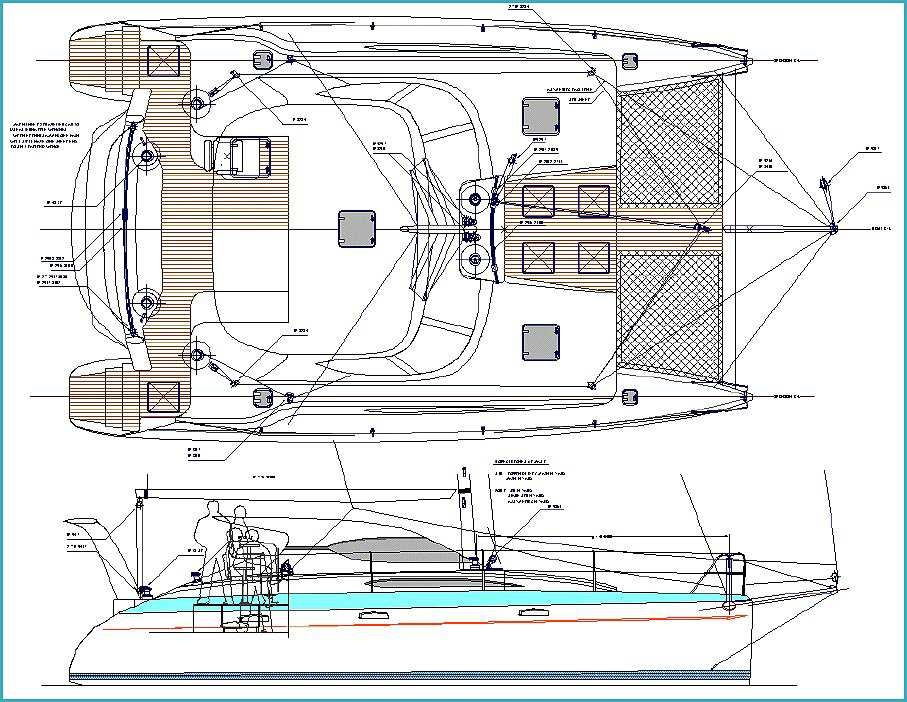

SAIL AREA MAIN & FORE TRIANGLE       .......................   91.00M2

"New"
Click to view pictures of the finished 40 ft sailing multihull design
