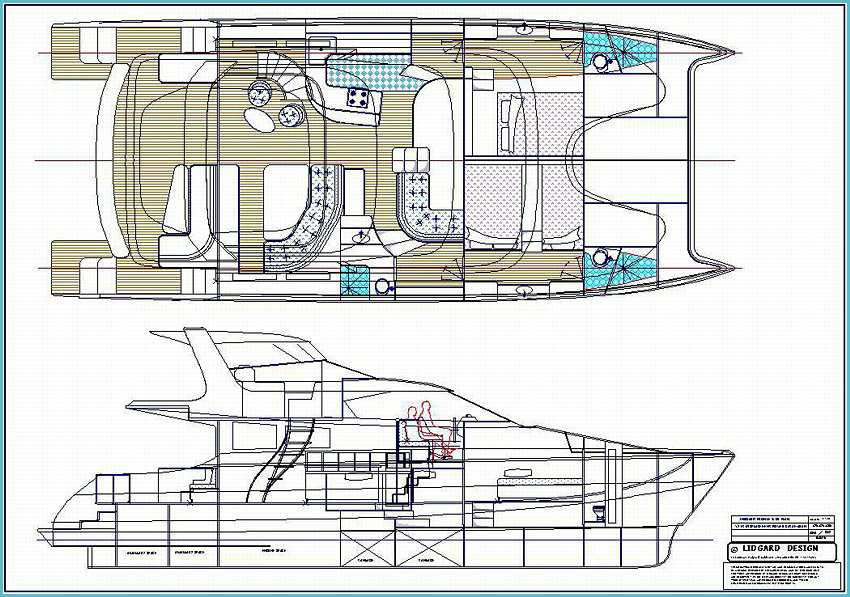

This power catamaran hull concept is pure displacement with narrow beamed high prismatic hulls offering low horse power requirements to achieve more than acceptable performance with long range for both coastal or offshore cruising. With engine and tank age spaces amidships this will help reduce pitching motions which will allow the boat to be driven harder for longer and also free up the aft spaces for stowage and power generation etc. The interior volume offers a prospective owner unlimited accommodation possibilities fwd, amidships and above in the flybrige with access gained by way of internal stairs. the cockpit over hang being engineered to carry the tender and lifting gear With a large cockpit leading to the open transoms and wide side decks giving easy access to the recessed fore deck, mooring or just relaxing above will be a pleasure. Construction where ever possible. is of the developable epoxy composite panel type all being computer generated to aid the accuracy and to speed construction.

• Multi hull power boats
• Lidgard Yacht Design Web Site Directory
• Lidgard Yacht Design home page
• contact

Click any thumb nail image below
          to view a larger image and then
Back  to return again

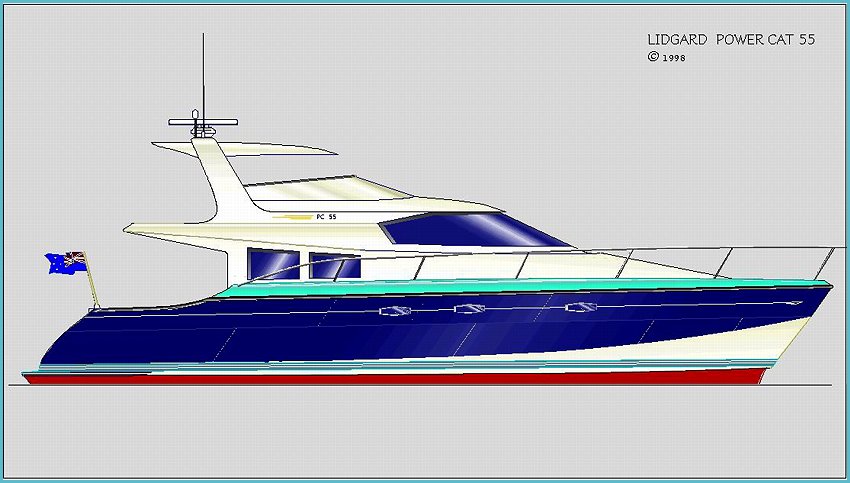

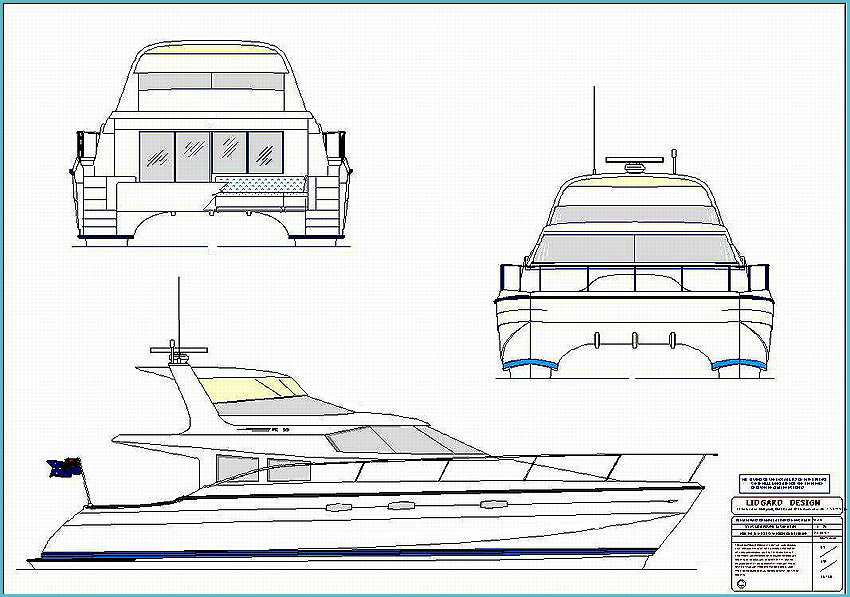

16.750 MTR LOA PILOT HOUSE
DISPLACEMENT POWER CATAMARAN

                               PRINCIPAL DIMENSIONS

LOA                            .........................................  16.750 MTR
DWL                            ........................................  15.200 MTR
BEAM/MAX.                          ............................    7.000 MTR
DISPLACEMENT AT DWL                 ................. 16,000  KG
WING DECK CLEARANCE                       .......   1.000MTR

HORSE POWER RANGE                           .................2 * 250HP -  2 * 400HP

PERFORMANCE    .... CRUISING   16KNOT  ----  MAX.  24 KNOT
