Lidgard Yacht Design, 38 ft Easy Build Lapstrake Schooner
Schooner by Lidgard Yacht Design

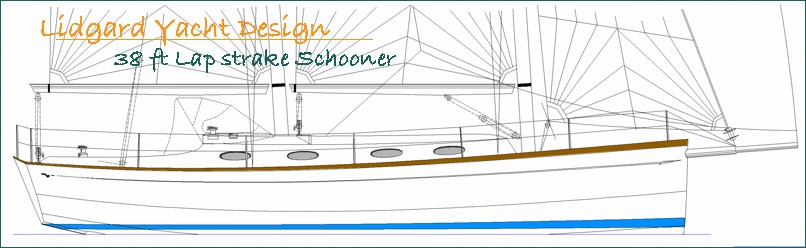

38 ft Lapstrake Schooner




At Lidgard Yacht Design we can prepare a classic or retro style sail boat design for you to whatever era aesthetics you may desire.

Build medium for this design is to be from either plywood cored epoxy glass composite or foam cored composites. Internal fit out is from plywood and timber trim. The object of this design is to offer maximum boat for the minimum labour effort and cost financially. To make this concept work one must be less concerned with weight and as a consequence we chose a chined concept with aesthetics to suit. The schooner rig will minimize deck complexity and cost at a minimal additional cost compared to a sloop rig.



Send us an email

Back to Stock Plans Page

LYD Contact Details

LYD directory

Home




If you wish to order a set of study plans for this design.
Australian $25.00 per set.

Click pay now button below.

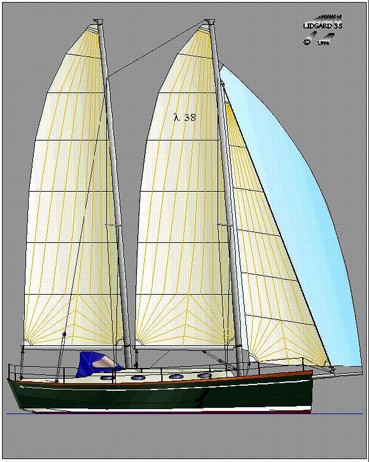

The images opposite are what we mail out as A3 colour prints with a study plan purchase for the 38 ft Schooner design.







Lidgard Yacht Design 38ft Lapstrake Cruising Yacht.

Principal Dimensions

Lod (Including Sprit) ..................... 12.750 Mtr
Loa ......................... 11.900 Mtr
Dwl ......................... 10.600 Mtr
Beam Max ......................... 3.965 Mtr
Draft Fixed Keel ......................... 1.540 Mtr

Centre Board Option
Draft Board Down ....................Na

Main Sail ...........................36 M2
Mizz Sail ........................... 36 M2
Fore Triangle ......................... 17.5 M2
Total Sa ........................ 89.5 M2

Mast Above Water ........................15.360 Mtr

Prismatic Coefficient = V2/ (Maxa*L) .............. 0.56
Sinkage Kg Per Cm = (B1*Spacing/3)*10.25 .............. 240 Kg
Righting Moment At 1 Degree Kgm = ............. 218 Kg

Displacement ......................... 7427 Kg
Ballast ......................... 2822 Kg



Construction drawing list Drawings supplied with a stock
plan purchase. 2 x copies of each drawing supplied


14_38_chainplates
13_38_joiner sections
12_38_bhd sections
11_38_structural scantlings
10_38_hull lines
09_38_rudder
08_38_body plan
07_38_ keel structures
06_38_hull panel offsets
05_38_structural layout plan
04_38_ outboard profile & deck plan
03_38_sail plan
02_38_ inboard profile & general arrangement plan


1-1 plots

01_hull frame sections
02_deck sections
03_Rudder
04_Keel
05_Ballast


The images below are what we mail out as A3 colour prints with a PayPal study plan purchase for the 38 ft Schooner design.

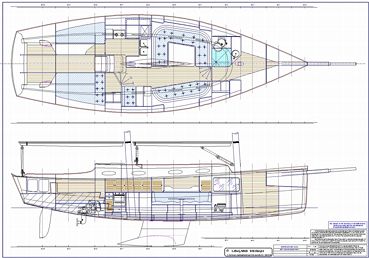

General Arrangement Plan and Inboard Profile

Outboard Profile and Deck Plan

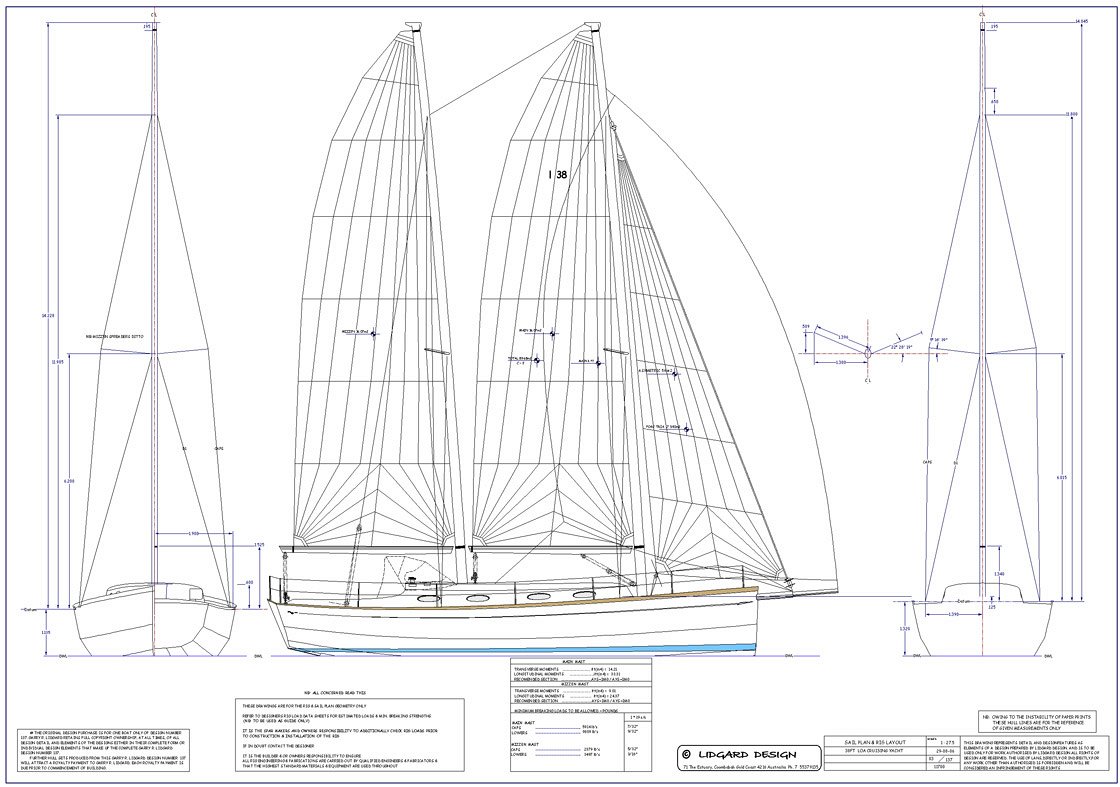

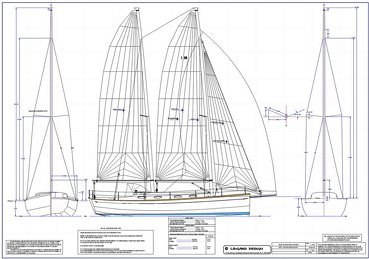

Sail Plan ................. To view larger image Click Here

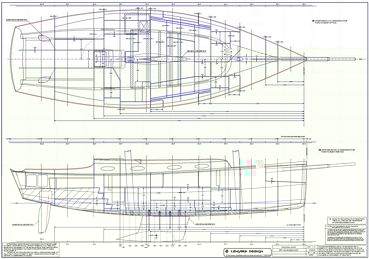

Structural Layout Plan

Developed Hull Parts scaled offsets
