The images shown on this page are generally those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.


If you wish to order a set of study plans for this design.
Australian $20.00 per set.

Click pay now button below.

41 ft Monohull Cruiser Racer
Study Plan drawing list


01 General arrangement
02 Deck plan & outboard profile
03 Sail plan
04 Joiner sections



41 ft Monohull Cruiser Racer
Construction Plan drawing list


Supplied as scaled ink plots on B1 size media.
2 x copies of each supplied


01. keel & ballast
02. keel landing structures
03. deck plan
04. (A) joiner sections
04. (B) joiner sections
05. sail plan
06. struct. arr. plan
07. chainplates
08. scantlings profile
09. rudder
10. hull lines
11. general arrangement plan
12. hull frames hard copy
13. deck frames hardcopy

Full scale plots:
1 x copy of each supplied


01. profile and rudder sections
02. keel section foils
03. ballast profile plot
04. ballast body plan
05. ballast plan plot

Files on CD disc:

1 x copy

01. Building jig frame cutting files supplied on CD disc.

41 ft Monohull Cruiser Racer
Principal Dimensions


L.o.a ....................................... 12.500 m (41' 0")
L.w.l ....................................... 11.000 m
Beam (overall).......................... 3.880 m
Beam (hull WL) ........................ 2.665 m
Draft (Min)............................... 2.500 m
Draft (Max).............................. 2.500 m
. Displacement at D.w.l. ............. 5800 kg
Ballast.......................................2417 kg
Righting Moment @ 1 deg. Kgm= ....180 Kgm
Sinkage kg per cm = .................... 215 kg

Sail Areas
main..................................... 61 Sqm
jib 100%............................... 34.00 Sqm

Yanmar sail drive ............... 30 hp - 50 hp

Construction:
Epoxy resin-stitched glass-foam or balsa cored composites.


Construction for this design is from epoxy-stitched glass-foam & balsa cored composites for both shells and internals. Full size plots are supplied for Hull and Deck shell building frames plus full size plots for all appendages are supplied. 2 sets of drawings are supplied with a design purchase. These are in the form of computer generated scaled cad drawings plotted on B1 size media.

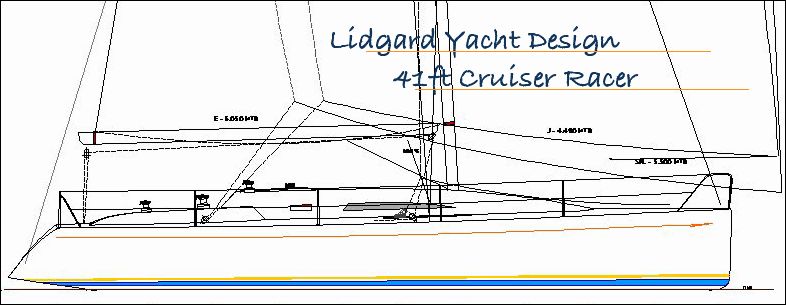

Sail Plan.

General arrangement plan.

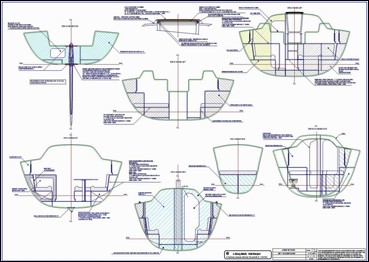

Joiner sections.

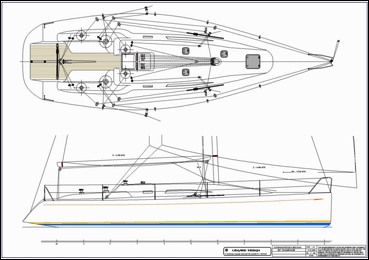

Deck plan.
