Lidgard Yacht Design we can prepare a classic
sail boat design for you to what ever era
aesthetics you may desire
Lidgard Yacht Design
International 8mtr Class Yacht.
Principal Dimensions
LOA: 14.286m
Beam: 2.502m
Displacement: 8,291 kgs
Ballast: 4,912 kgs
Sail Areas
Main (Actual): 98.6m2..........(Rated): 76.75m2
Fore Triangle: 29.8m2
Full size dwg
files are supplied for both Hull Frames and Deck
shell building plus full size dwg files for all
appendages. Drawings are supplied on flash drive
with a design purchase. These are in the form of
computer generated scaled cad drawings that may
then be plotted on B1 size media or just viewed
on screen.
Click image
to
view larger image
Click image
to
view larger image
Click
to
view larger image
|
 |
The
images shown below are indicative of those we
will
email out. There is no charge for this service.

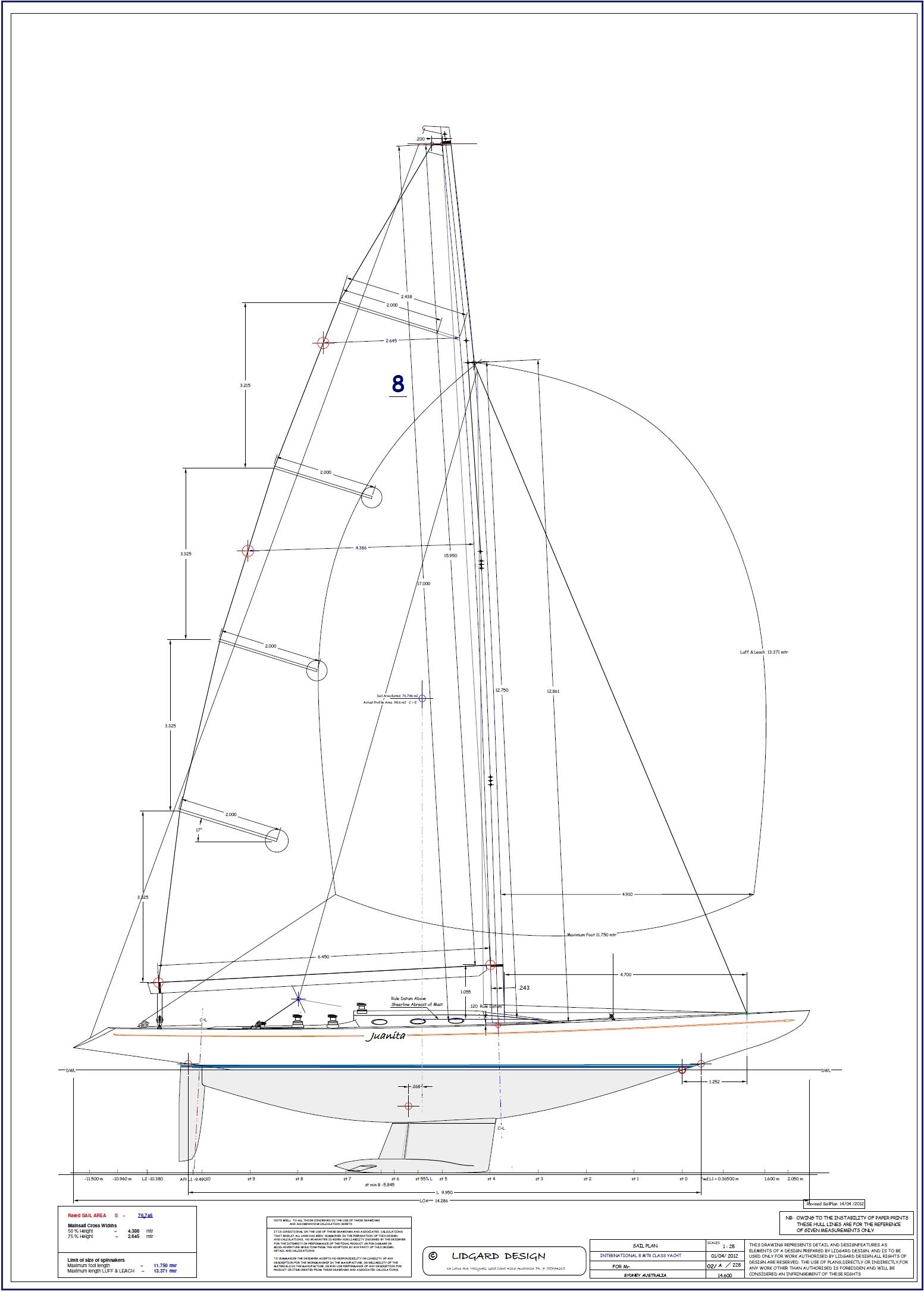

Sail Plan.
