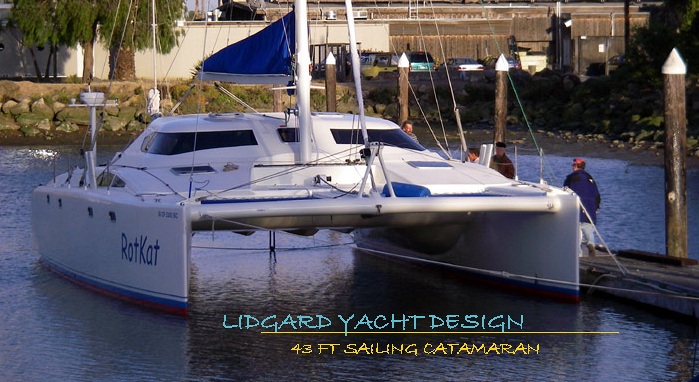

Catamaran 43 by Lidgard Yacht Design
Lidgard Yacht Design 43ft sailing multihull design




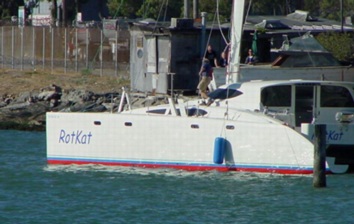

To visit a California based owner builder website for this design.
Click here.

Back to Stock Plans Page.

Send us an email

LYD Contact Details

LYD directory

Home

The images shown on this page are generally those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.


If you wish to order a set of study plans for this design.
Australian $30.00 per set.

Click pay now button below.

Study Plan drawing list

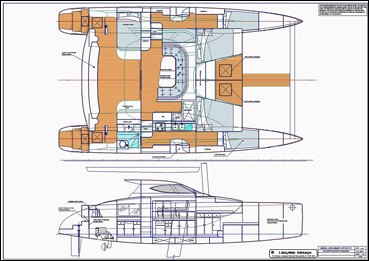

01(A) General arrangement (option A)

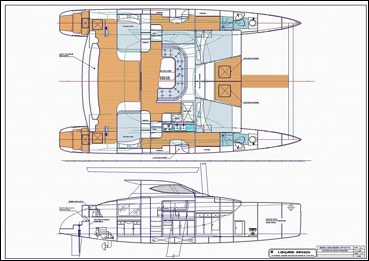

02(B) General arrangement (option B)
03(C) General arrangement (option C)
04(A) Deck plan Outboard views (single wheel)
05(B) Deck plan Outboard views (twin wheels)
06 Sail plan
07 Midships sections (of option A)


43 ft Performance Cruising Catamaran
Principal Dimensions


L.o.a .......................... 13.000 m
L.w.l........................... 12.750 m
Beam (overall).......................... 7.800 m
Beam (hull) .......................... 1.110 m
Beam/length Ratio .......................... 11.5
Draft (Min) .......................... 1.150 m
Draft (Max).......................... 2.140 m
Volume Available Below D.w.l. .................. 7250 kg
Sail Areas
main.......................... 75.00 Sqm
jib.......................... 29.00 Sqm
Righting Moment.......................... 23000 Kgm
Bruce Number .......................... 1.33


Construction for this design is from epoxy-stitched glass-foam cored composites for both shells and internals. Full size plots are supplied for Hull and Deck shell building frames plus full size plots for all appendages are supplied. 2 sets of drawings are supplied with a design purchase. These are in the form of computer generated scaled cad drawings plotted on B1 size media.



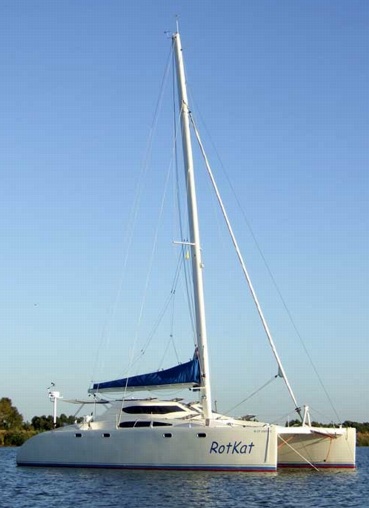

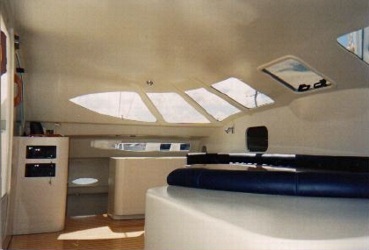

Lidgard 43ft Sailing Catamaran
Construction drawings list


01 Build frame layout
02 Build frame, hull
02(B) Build frame, deck
03 Structural plan
05 Outboard profile & deck plan
06 Sail plan
07 General arrangement (different options available)
08 Rudder detail
09 Centre board
10 Centre case
11 Aft beam
12(A) Main bhd (A)
12(B) Main bhd (B)
12(C) Main bhd (C)
13 Fwd. end wingdeck section
15 Aluminium fore beam option
15(A) Composite fore beam (A)
15(B) Composite fore beam (B)
15(C) Composite fore beam (C)
15(D) Composite fore beam (D)
15(E) Composite fore beam (E)
16 Window rebates
17 Platform
18 Chainplate bhd.
19 Chainplate detail
20 Wing deck longitudinals
21 Hatch details
22 Targa 1-1
23 Targa details















Sail Plan.

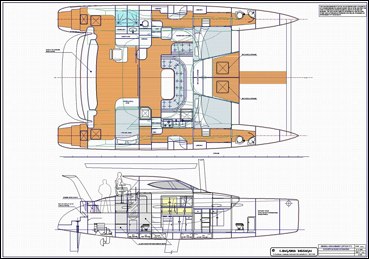

General arrangement plan options.





Midship section.

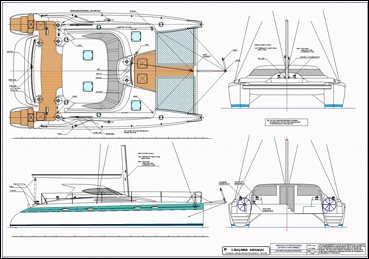

Deck plan options.
