Lidgard Yacht Design 48ft sailing catamaran design
Lidgard Yacht Design 48ft sailing multihull design






The images shown on this page are generally those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.

Construction for this design is from epoxy-stitched glass-foam cored composites for both shells and internals. NC cutting files are supplied for cutting all building jigs plus full size plots for all appendages are supplied. 2 sets of drawings are supplied with a design purchase, These are in the form of computer generated scaled cad drawings plotted at A0 size.


If you wish to order a set of study plans for this design.
Australian $30.00 per set.

Click pay now button below.



Back to Stock Plans Page.

Send us an email

LYD Contact Details

LYD directory

Home



48 ft Performance Cruising Catamaran
Principal Dimensions


LOA....................................................14.720 MTR
DWL...................................................14.200 mtr
Beam/Max.............................................8.368 mtr
Displacement range............................8750 kg ~11200 kg
Sponson WL beam to LWL length ratio.....................12.19 : 1
Draft...............................................1.400 mtrs (fixed keels)
Wing deck clearance............................1.050 mtr
Minimum head room...............................2.050 mtr
Rate of sinkage kg per cm ........265 kg
Sail Area main and fore triangle..........130.60 m2




Study Plan drawing list;

01 General arrangement
02 Deck plan Outboard views
03 Sail plan
04 Fwd. & aft views
05 Midships section
06 Rudder detail

Construction drawing list.

01 Structural plan
02 Structural profile
03 Outboard profile & deck plan
04 Sail plan
05 General arrangement
06 Rudder detail
07(A) Aft beam (A)
07(B) Aft beam (B)
12(A) Main bhd (A)
12(B) Main bhd (B)
12(C) Main bhd (C)
13 Fwd. end wingdeck section
15(A) Composite fore beam (A)
15(B) Composite fore beam (B)
15(C) Composite fore beam (C)
15(D) Composite fore beam (D)
15(E) Composite fore beam (E)
17 Platform
18 Chainplate bhd
19 Chainplate detail
20 Bhd. Sections
21 Joiner sections
23 Targa details
24 Keel detail (A)
25 Keel detail (B)
26 Wingdeck longitudinals
27 Hull frames (on disk)
28 Deck frames (1-1 ink plots)
29 Center board sections (1-1 ink plots)
30 Rudder sections (1-1 ink plots)

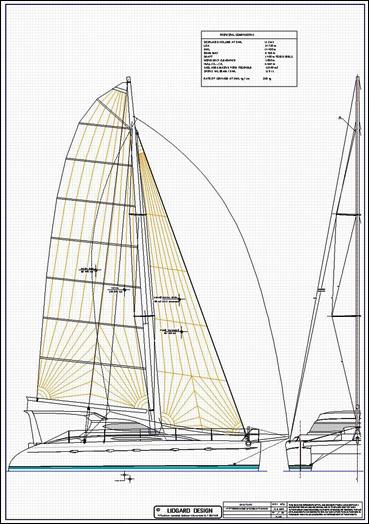

Sail Plan

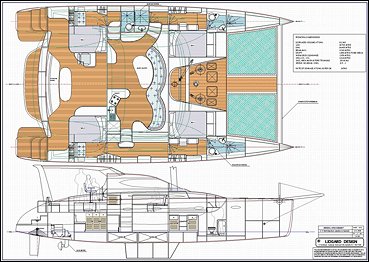

General arrangement plan.

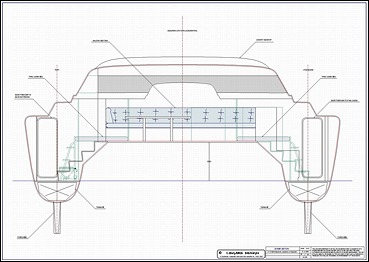

Midship section

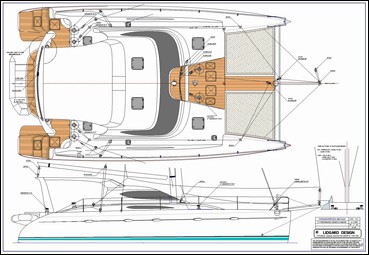

Deck plan

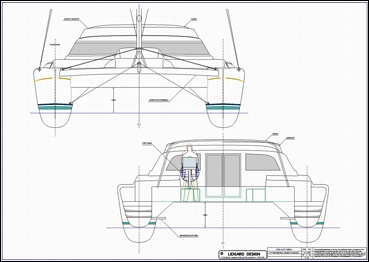

Fwd & Aft view sections
